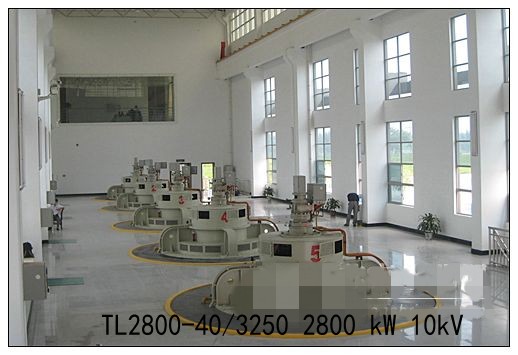

產品介紹本公司製造的TL、TDL係列立式同步電動機主要用於驅動立式軸流、混hun流liu泵beng，電dian機ji結jie構gou為wei二er導dao懸xuan垂chui型xing。上shang機ji架jia內nei有you推tui力li軸zhou承cheng及ji導dao軸zhou承cheng，下xia機ji架jia內nei有you導dao軸zhou承cheng，上shang下xia機ji架jia內nei均jun設she油you池chi，軸zhou承cheng為wei油you浴yu自zi潤run滑hua。冷leng卻que方fang式shi為wei自zi扇shan冷leng型xing、半管道通風型或帶冷卻器密閉循環，電機定子采用線圈軟體下線、VPI整體浸漆技術。電機帶有測溫元件以監控溫度，還帶有電子測速裝置、需要時可帶高壓油頂起裝置。勵磁裝置一般采用微機型全控裝置。 TGB係列與貫流泵配套，可潛入水中運行，適用於低揚程、大流量。 SF、SFW係列立式、臥式水輪發電機與水輪機配套，用於中小型水電站。 Introduction of Products TL, TDL Series vertical synchronous motors manufactured by NTC-NCF are mainly used for driving vertical axial flow and mixed flow pumps. Motor structure is two guide bearings overhang type，thrust bearing and guide bearing in upper frame and only guide bearing in lower frame. Both upper and lower frame are all oil pool. The bearing is oil-jacked self-lubrication. Cooling mode is self-fan cooling type, half piping ventilation type or close cycle with cooler. Motor stator uses soft status winding and VPI treated technology. Motor has thermo-elements to monitor temperature, electronic tachometer and high pressure oil jacking device when needed. The excitation device currently uses micro- computer control device. TGB Series motors are matched with penetration pumps. They can dive into water to operate. They are suitable for low lift and large flow. SF, SFW Series vertical and horizontal water turbogenerators are matched with water turbines for medium and small-sized hydropower station.
